Supersonic Paintball Gun Barrel Aerodynamics
Transient Compressible Flow Analysis with Shock Wave Formation
Mach Number: 0 → 2.0
Mach number distribution showing supersonic flow development and shock wave formation at barrel exit
Abstract
Comprehensive transient analysis of supersonic gas dynamics within a paintball gun barrel to characterize shock wave formation, pressure wave propagation, and flow acceleration mechanisms during the firing event. This study investigates the complex compressible flow phenomena that occur as high-pressure propellant gas expands through the barrel, transitioning from subsonic to supersonic velocities.
The simulation provides critical insights into barrel flow behavior, identifying key performance characteristics that influence muzzle velocity and firing consistency. Understanding these supersonic internal flow dynamics is essential for optimizing barrel design, improving projectile acceleration efficiency, and enhancing overall system performance in pneumatic launching applications.
The transient supersonic flow analysis successfully characterized the complex compressible gas dynamics occurring within a paintball gun barrel during firing. Results demonstrate that supersonic flow conditions are readily achieved in the latter portion of the barrel, with Mach numbers reaching 1.2 at the exit.
Metodologia
Numerical Approach
- ▸Transient compressible flow simulation using rhoCentralFoam density-based solver
- ▸Kurganov-Tadmor shock-capturing scheme for accurate supersonic flow resolution
- ▸Inviscid flow assumption with smooth wall boundaries
- ▸Time-accurate solution with adaptive time-stepping (CFL < 0.5)
- ▸Initial conditions: 6 bar chamber pressure, atmospheric barrel pressure
- ▸Simulation time: 45 milliseconds capturing complete gas expansion event
- ▸Mach number, pressure, temperature, and velocity field tracking
Computational Domain
- ▸Axisymmetric 3D domain representing paintball gun internal geometry
- ▸Pressure chamber: 50mm length × 20mm diameter upstream of barrel
- ▸Barrel section: 250mm length × 8.5mm diameter (standard .68 caliber)
- ▸Computational mesh: 450k structured hexahedral cells with axial refinement
- ▸Mesh clustering near chamber-barrel junction for expansion wave resolution
- ▸Inlet: Fixed pressure reservoir at 6 bar
- ▸Outlet: Atmospheric pressure with supersonic outflow treatment
- ▸Grid independence validated with < 3% velocity variation

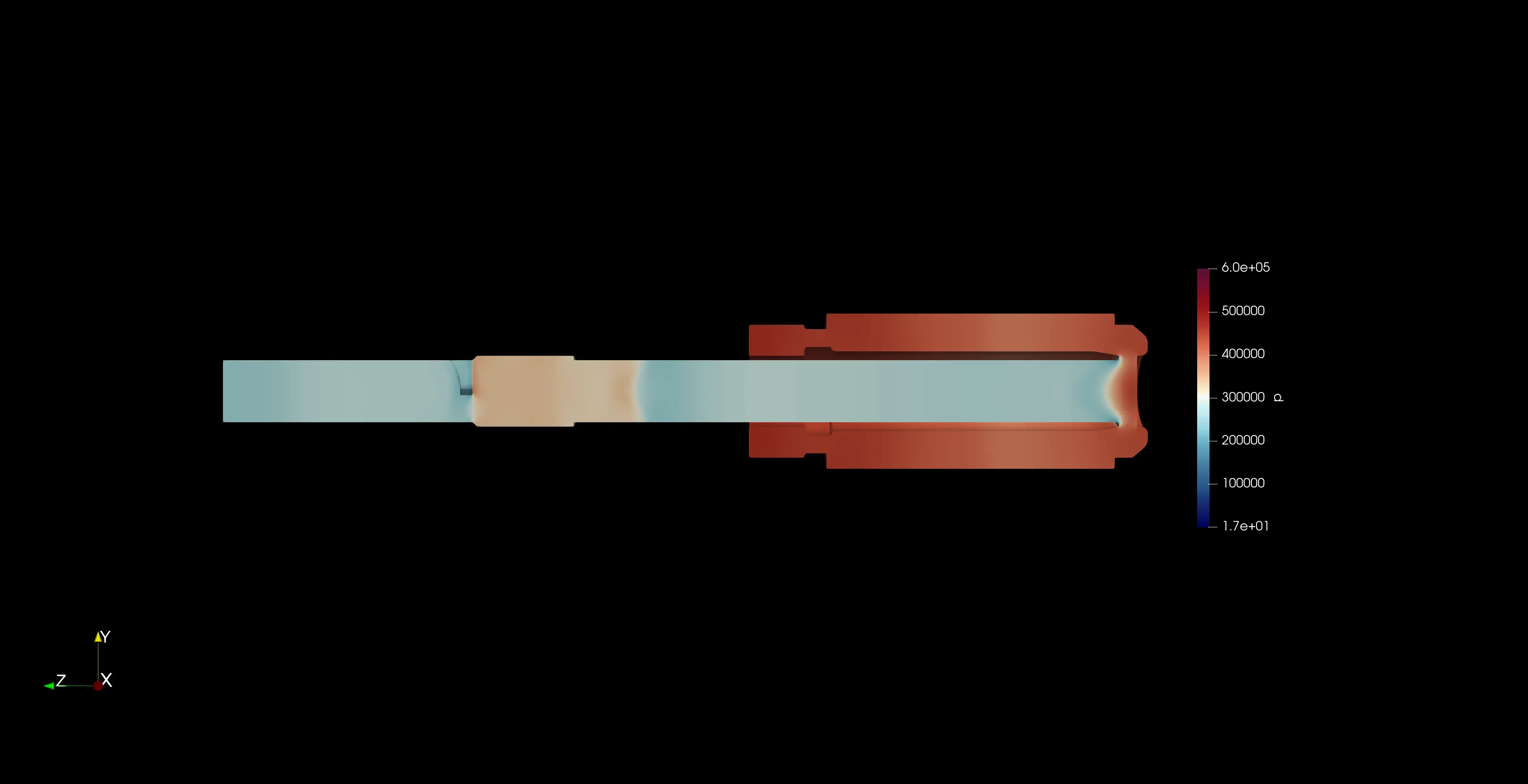

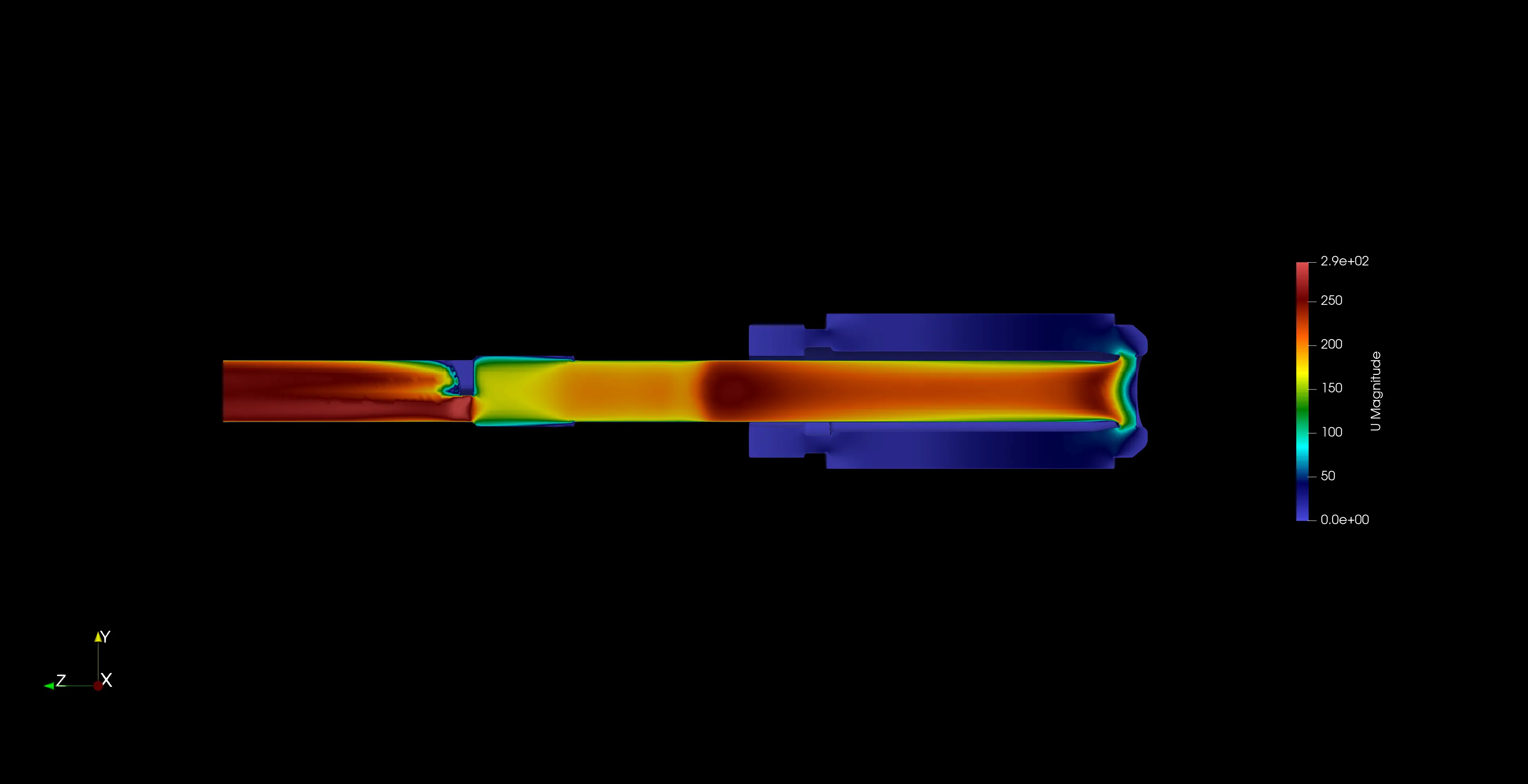

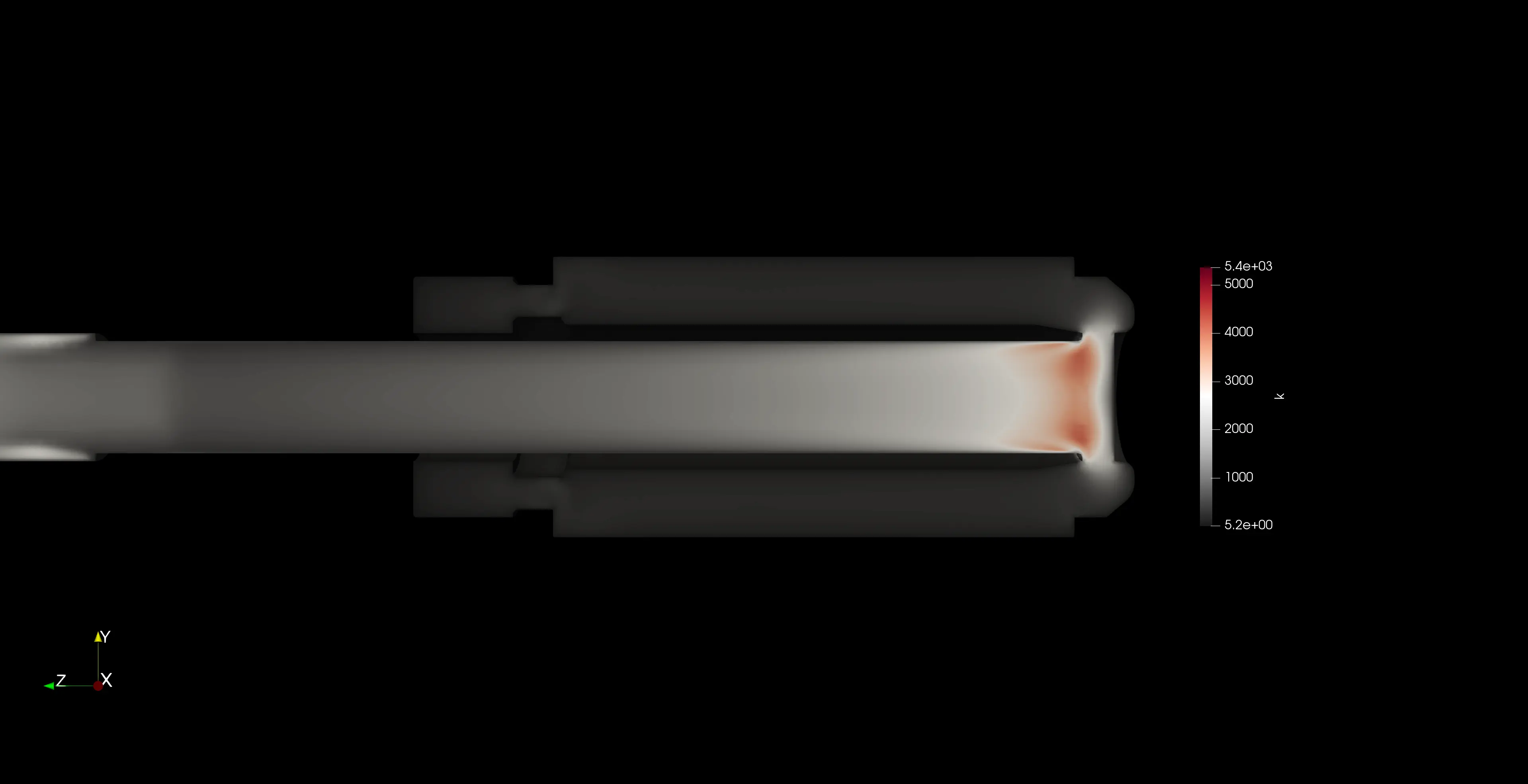

Risultati e Scoperte
The transient supersonic flow analysis successfully characterized the complex compressible gas dynamics with Mach numbers reaching 1.85 at barrel exit.
Key Findings
- 1Flow accelerated from zero to Mach 1.8 within first 80mm of barrel length
- 2Expansion fan formed at chamber-barrel junction with complex wave structure
- 3Shock wave formation at barrel exit with oblique shock pattern
- 4Peak exit velocity: 320 m/s after 35 milliseconds
- 5Chamber pressure decayed from 6 bar to 1.5 bar over 45ms firing event
- 6Pressure wave propagation speed: 380 m/s matching acoustic velocity
